Silicone foam is mainly made of silicone rubber raw material, supplemented with fillers (such as white carbon black), vulcanization accelerators, foaming agents and other auxiliary materials. After mixing evenly, it is made through high-pressure and high-temperature foaming process. Its microstructure presents a porous honeycomb like structure with a density as low as 0.16-0.45 g/cm ³ (matrix density 1.17 g/cm ³), forming a polymer elastomer with both elasticity and lightweight properties. ‌

Foaming technology: including chemical foaming (decomposition of hydroxyl foaming agents to produce gas) and physical foaming (expansion of organic foaming microspheres).
Special modification processes: such as UV light curing, plasma treatment, flame retardant compounding (aluminum hydroxide/spherical silicon composite flame retardant), etc.
Structural control: By adjusting the cell size through the use of a foaming agent and process parameters, closed cell/open cell structural design can be achieved.

Learn More.

Mechanical properties: Compression rebound rate>90%, adjustable hardness range 20-80 Shore C.
Thermal performance: Temperature resistance range -100 ℃~350 ℃, thermal conductivity coefficient 0.4W/m · K.
Electrical performance: Volume resistivity>10 ΩΩ· cm (unfilled), increasing filler will reduce insulation.
Environmental tolerance: resistant to UV aging (no obvious cracking after 3000 hours), waterproof rating IPX7, resistant to ozone concentration above 50pphm.

Learn More.

0.8mm	10mm	1.6mm	2.3mm	3.18mm	4.76mm
0.0315‘’	0.394‘’	0.063‘’	0.0906‘’	0.125‘’	0.187‘’

We provide 0.8mm / 1.0mm / 1.6mm / 2.3mm / 3.18mm / 4.76mm Thick silicone foam。
We can customize silicone foam of any thickness.

Learn More.

structural classification

Closed cell type: mainly composed of independent bubble structures, suitable for sealing and insulation (such as sealing gaskets for new energy battery packs)
Open hole type: connected hole structure, good at sound absorption and shock absorption (such as interior materials for rail transit)
Hybrid type: combining the characteristics of both, used for special buffering scenarios

Industry application cases

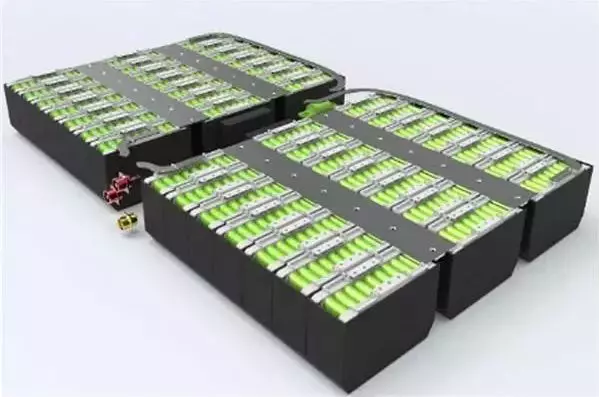

New energy vehicles: battery pack cushion (density 0.2g/cm ³), motor compartment insulation layer
Electronic appliances: PCB conductive shielding foam (surface resistance<0.1 Ω/sq)
Aerospace: cabin sound insulation materials (noise reduction coefficient NRC ≥ 0.8)
Medical equipment: Medical mattress (certified with ISO 10993 biocompatibility)

Learn More.

Depu Technology (Shenzhen) Co., Ltd. (hereinafter referred to as Depu) is a comprehensive service provider of organic silicone with a rich history of 15 years. We specialize in the production and distribution of various silicone products. For example, liquid silicone foam products and silicone rubber coil sheets. Our product thickness ranges from 0.1mm to 15mm, with a width of up to 4 meters. Every year, we provide over 500000 square meters of silicone materials/rolls/sheets to over 2000 satisfied customers worldwide.

Our mission is to provide customers with comprehensive solutions, focusing on sealing, weight reduction, electromagnetic shielding, insulation, thermal conductivity, and high and low temperature resistance (-60~400 degrees). We strive to become a small giant in providing customized silicone rolled coil solutions and quickly produce samples to meet the special needs of our customers.

Learn More.

If it is a professional quotation, you can fill in your quotation information in 【 Get A Quote 】.
For general questions, simply contact us.

Learn More.

Silicone Foam

Features: Fireproof, flame retardant (UL94V), sealed, soundproof, shock resistant, environmentally friendly. Certified by ROHS/FDA.
Silicone foam application: Cell transformation transfer tray buffer pads, support pads, buffer pads, etc.
Product application: Environmentally sealed, dustproof, waterproof, moisture-proof or light blocking, such as electronic product casings, lamp contours, electronic component peripherals, etc.
Vibration isolation, buffering, and sealing, such as electric vehicle interiors, battery pack interiors, energy storage systems, etc.
